Sample Loops
PEEK Sample Loops
ARE-Applied Research™® brand PEEK sample loops for HPLC and GC are available with volumes
of up to 20 ul. They are manufactured with our Ultra-T™ PEEK tubing which has tightest
tolerances available for PEEK tubing (OD and ID: +/-0.025 mm), guaranteeing the smallest volume deviation possible
and better performance on your HPLC system. Other volumes and sizes are available upon request.
|
|
| Volume | Capillary ID | Cheminert™/Rheodyne™ Style
ARE-Applied Research Cat. No | VICI Valco™ Style
ARE-Applied Research Cat. No |
|---|
| 1 μl | 0.064 mm | 41.001.006-10.1 | 41.001.006-10.2 |
| 2 μl | 0.064 mm | 41.002.006-10.1 | 41.002.006-10.2 |
| 5 μl | 0.18 mm | 41.005.018-12.1 | 41.005.018-12.2 |
| 10 μl | 0.25 mm | 41.010.025-13.1 | 41.010.025-13.2 |
| 20 μl | 0.25 mm | 41.020.025-13.1 | 41.020.025-13.2 |
| 50 μl | 0.50 mm | 41.050.050-14.1 | 41.050.050-14.2 |
| 100 μl | 0.50 mm | 41.100.050-14.1 | 41.100.050-14.2 |
| 250 μl | 0.75 mm | 41.250.075-15.1 | 41.250.075-15.2 |
| 500 μl | 0.75 mm | 41.500.075-15.1 | 41.500.075-15.2 |
| 1000 μl | 0.75 mm | 41.1000.075-15.1 | 41.1000.075-15.2 |
Note: For tolerances and pressure stability
for our PEEK tubing see PEEK Tubing page.
 |

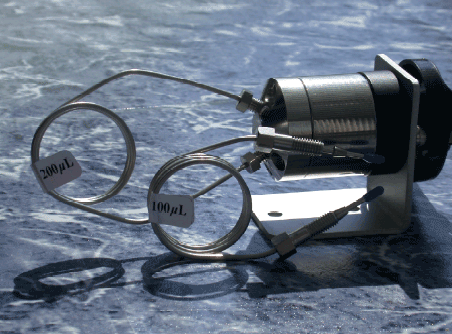

SS Sample Loops
ARE-Applied Research™ stainless steel tubing used to manufacture our sample loops is welded,
annealed and tested according to EN 10204/3.1B protocol. Then the tubing is cut to the proper
size using EDC (electronic discharge) techniques to achieve square and burr-free ends for
zero-dead volume connections and optimal performance on your HPLC or GC. Tolerances for
SS tubing and capillaries for these loops are +/- 0.025mm for both OD and ID.
|
| Volume | Capillary ID | Cheminert™/Rheodyne™ Style
ARE-Applied Research Cat. No | VICI Valco™ Style
ARE-Applied Research Cat. No |
|---|
| 5 μl | 0.18 mm | 46.005.018-02.1 | 46.005.018-02.2 |
| 10 μl | 0.25 mm | 46.010.025-03.1 | 46.010.025-03.2 |
| 20 μl | 0.25 mm | 46.020.025-03.1 | 46.020.025-03.2 |
| 50 μl | 0.50 mm | 46.050.050-04.1 | 46.050.050-04.2 |
| 100 μl | 0.50 mm | 46.100.050-04.1 | 46.100.050-04.2 |
| 250 μl | 0.75 mm | 46.250.075-05.1 | 46.250.075-05.2 |
| 500 μl | 0.75 mm | 46.500.075-05.1 | 46.500.075-05.2 |
| 1000 μl | 0.75 mm | 46.1000.075-05.1 | 46.1000.075-05.2 |
| 2 ml | 1.0 mm | 46.2000.100-06.1 | 46.2000.100-06.2 |
| 5 ml | 1.0 mm | 46.5000.100-06.1 | 46.5000.100-06.2 |
