PoroMet Filters and Frits
PoroMet™ is a stainless steel “fabric” that was developed by one of the leading woven stainless steel cloth manufacturers
for Applied Research Europe GmbH (ARE). PoroMet filter discs are used for larger bore columns or large inlet filters, among

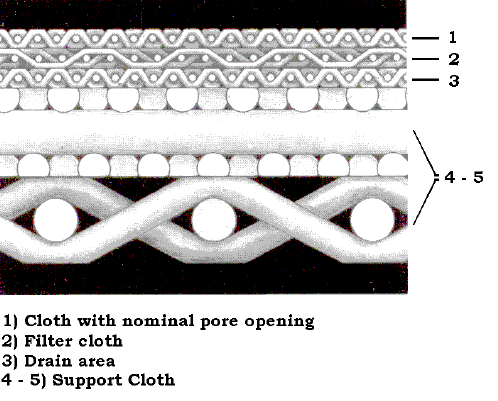

other uses. PoroMet fabric provides a stable mechanical construction, where 5 different layers of “filter cloth” are sintered together.
Filter discs and frits can be cut to your size requested from larger sheets.
| P/N |
Inch / mm | Tickness in
Inch / mm | Porosity in
µm |
|---|
| 14.787.67.020-01 | 0.787 / 20 | 0.067 / 1.7 | 2 |
| 14.787.67.050-01 | 0.787 / 20 | 0.067 / 1.7 | 5 |
| 14.24.17.005-00 | 0.945 / 24 | 0.067 / 1.7 | 5 |
| 14.24.19.300-00 | 0.945 / 24 | 0.075 / 1.9 | 300 |
| 14.54.17.002-00 | 2.126 / 54 | 0.064 / 1.7 | 2 |
| 14.54.19.002-00 | 2.126 / 54 | 0.075 / 1.9 | 2 |
| 14.54.50.002-00 | 2.126 / 54 | 0.197 / 5.0 | 2 |
| 14.54.50.002-01 | 2.126 / 54 | 0.197 / 5.0 | 2 |
| 14.83.50.005-00 | 3.268 / 83 | 0.197 / 5.0 | 5 |
| 14.107.50.002-01 | 4.213 / 107 | 0.197 / 5.0 | 2 |
Please note: Other dimensions and materials are available on request.
